V18. Viborg UA201 USB-A 2.0 /UB201 USB-B 2.0 / VT08 USB-C Connectors (Set of 1)

Original price was: SGD $10.00.Current price is: SGD $9.00.

Viborg UA201 USB-A 2.0 /UB201 USB-B 2.0 / VT08 USB-C Connectors (Set of 1)

Free Local delivery for order above S$50.00

USB-A +
USB-B +
USB-C +
SGD $0.00
  • Options Price: SGD $0.00
  • Product Price: SGD $9.00
  • Total: SGD $0.00
Category: Tag:

Description

Viborg UA201 USB-A 2.0 /UB201 USB-B 2.0 / VT08 USB-C Connectors (Set of 1)

USB-A 2.0 male Viborg UA201 connector – will allow you to design high quality USB cables. Its contacts are made of a 24k gold-plated copper alloy, ensuring very good conductivity and resistance to oxidation. The connector accepts cables up to 8.5mm diameter. A screw holds the cable firmly in the connector, limiting mechanical stress.

USB-B 2.0 male Viborg UB201 connector – will allow you to design high quality USB cables. Its contacts are made of a 24k gold-plated copper alloy, ensuring very good conductivity and resistance to oxidation. The connector accepts cables up to 8.5mm diameter. A screw holds the cable firmly in the connector, limiting mechanical stress.

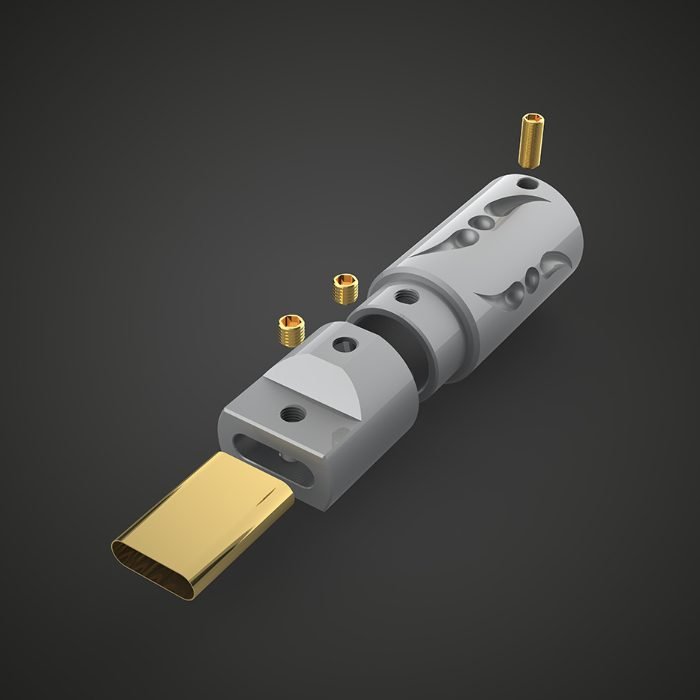

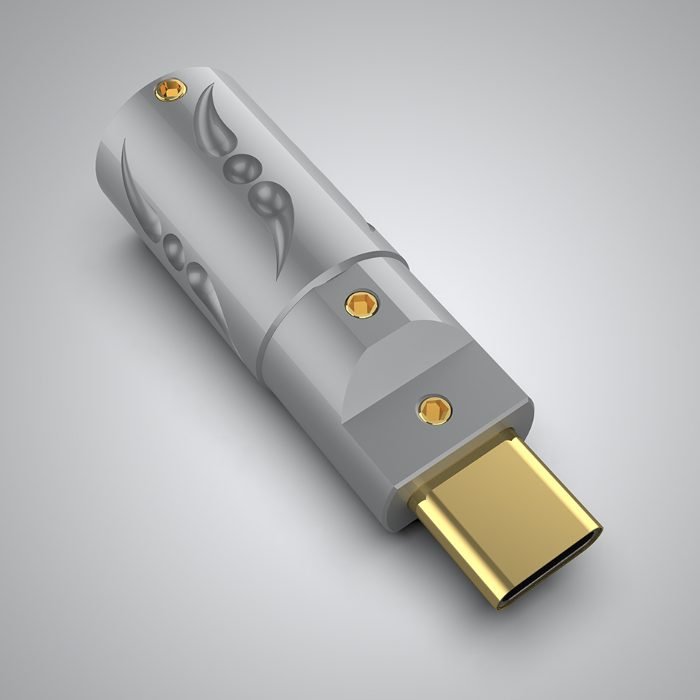

USB-C 2.0 male Viborg VT-08 connector – will allow you to design high quality USB cables. Its contacts are made of a 24k gold-plated copper alloy, ensuring very good conductivity and resistance to oxidation. The connector accepts cables up to 8.5mm diameter. A screw holds the cable firmly in the connector, limiting mechanical stress.


Technical characteristics

SPECIFICATIONS
Model UA201 USB-A 2.0
Contacts material Copper alloy
Contacts plating Gold 24k
Connection type To solder
Max cable diameter Ø8.5mm
Body dimensions 40 x 20mm
Color Gray

Technical characteristics

SPECIFICATIONS
Model UB201 USB-B 2.0
Contacts material Copper alloy
Contacts plating Gold 24k
Connection type To solder
Max cable diameter Ø8.5mm
Body dimensions 40 x 20mm
Color Gray

Technical characteristics

SPECIFICATIONS

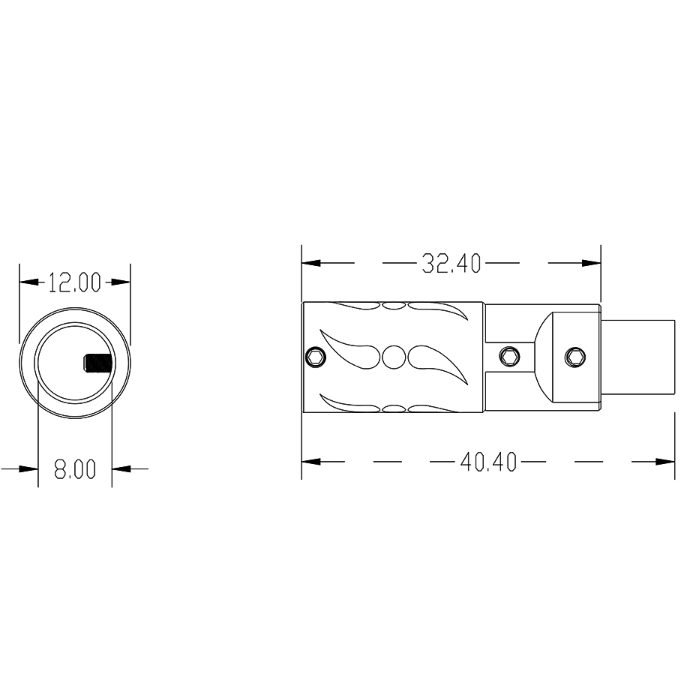

Model VT08 USB-C
Contacts material Copper alloy
Contacts plating Gold 24k
Connection type To solder
Max cable diameter Ø8mm
Body dimensions 40 x 12mm
Color Gray



Additional information

Weight 0.1 kg
