Description

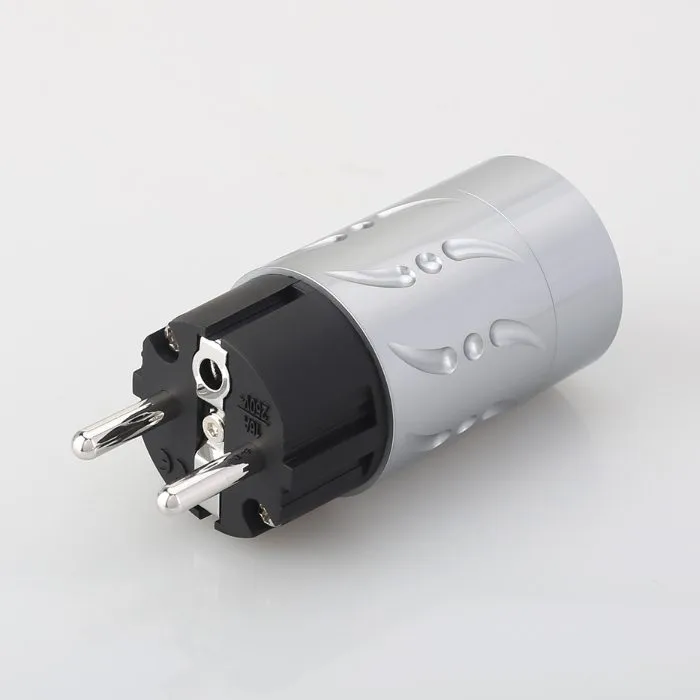

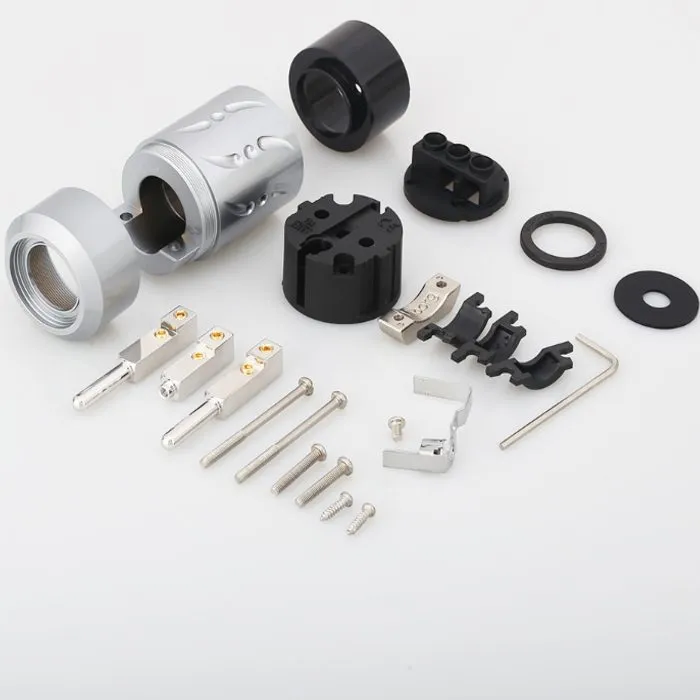

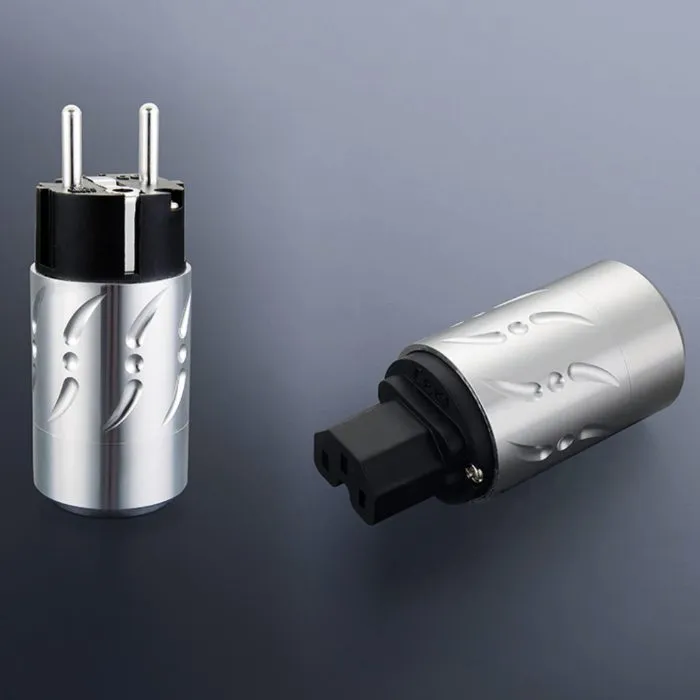

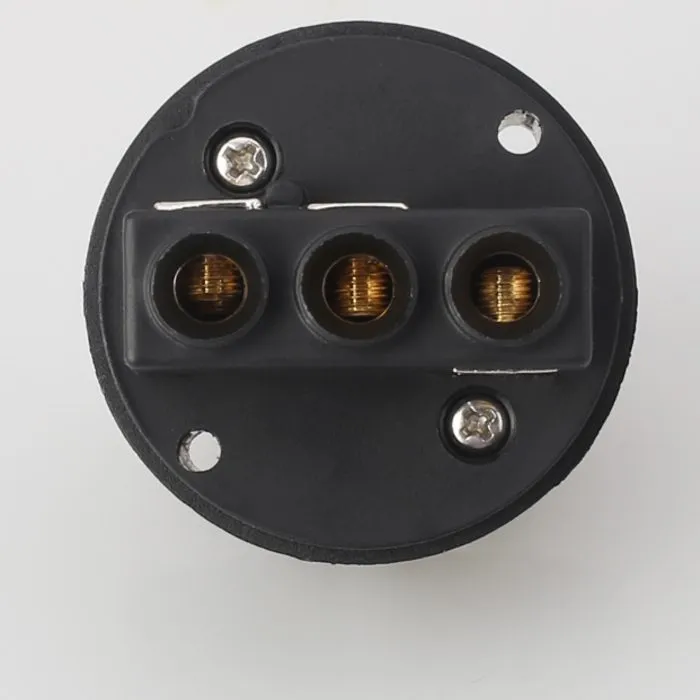

Viborg VE502R/VF502R Rhodium Plated Schuko EU Power Plugs (Set of 2)
Viborg VE502R/VF502R high-end connector uses high quality materials to provide the best possible electrical conductivity. Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Rhodium. The body is made of a particularly resistant polycarbonate, Bayer Makrolon 2805.
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | VE502R |
| Conductor | Pure Copper |
| Cable external diameter | Ø6mm – Ø20mm |
| Max. conductor diameter | Ø4.5mm |
| Contacts material | Pure Copper |
| Contacts plating | OFC Copper, Silver and Rhodium plated |
| Body material | Aluminum Alloy |
| Connection type | Hex screw |
| Dimensions | 79.5mm H x 40mm Diameter |
| Total length | 98.6mm |
| Voltage / Current | 250VAC 16A |
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | VF502R |
| Contacts material | Pure Copper |
| Body and contacts support material | DuPont Zytel® 101L NC010 NYLON RESIN |
| Mounting type | To solder (hex screws) |
| Max conductors diameter | Ø8mm |
| Min/Max cable diameter | Ø6mm / Ø20mm |
| Voltage / Current | 250V/10A, 125V/15A |
| Total dimensions | 63.7mm x Ø40mm |
| Color | Silver/Black |
