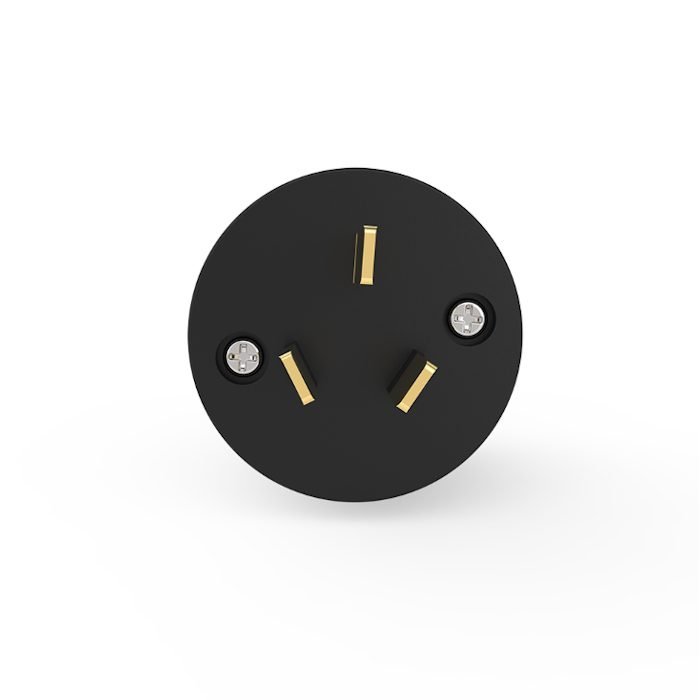

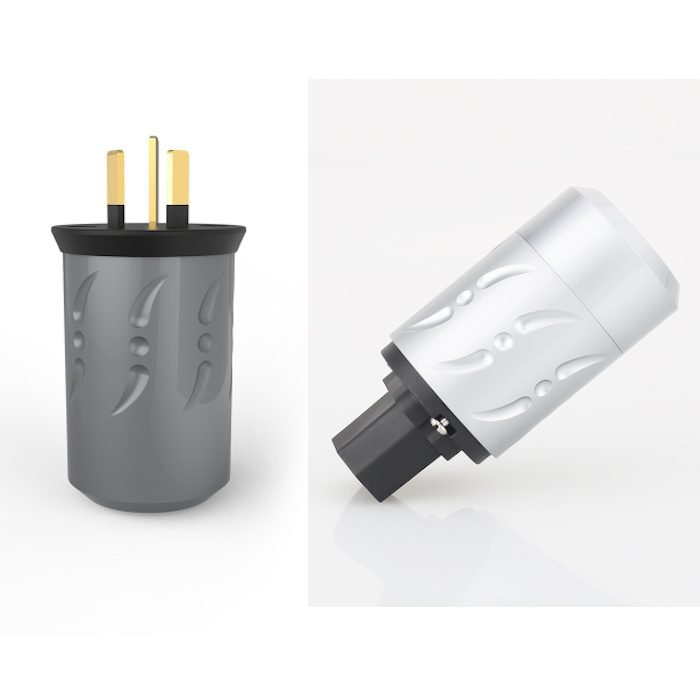

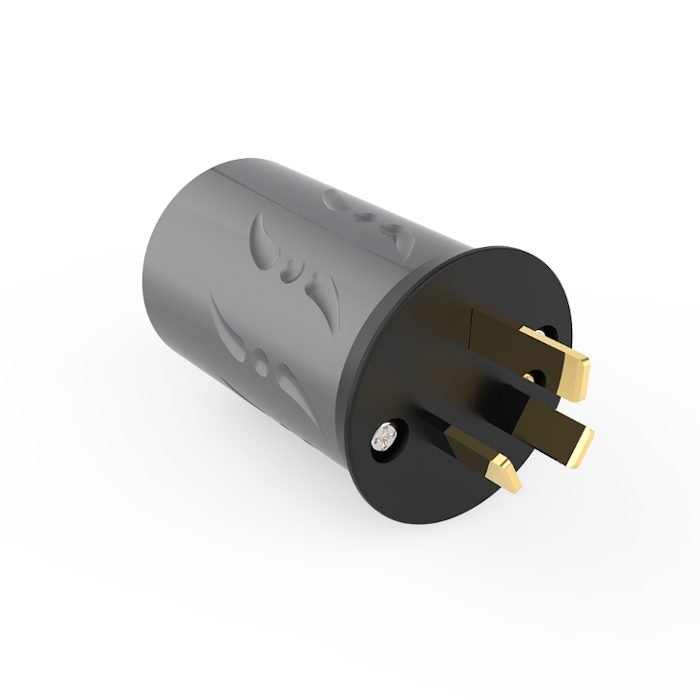

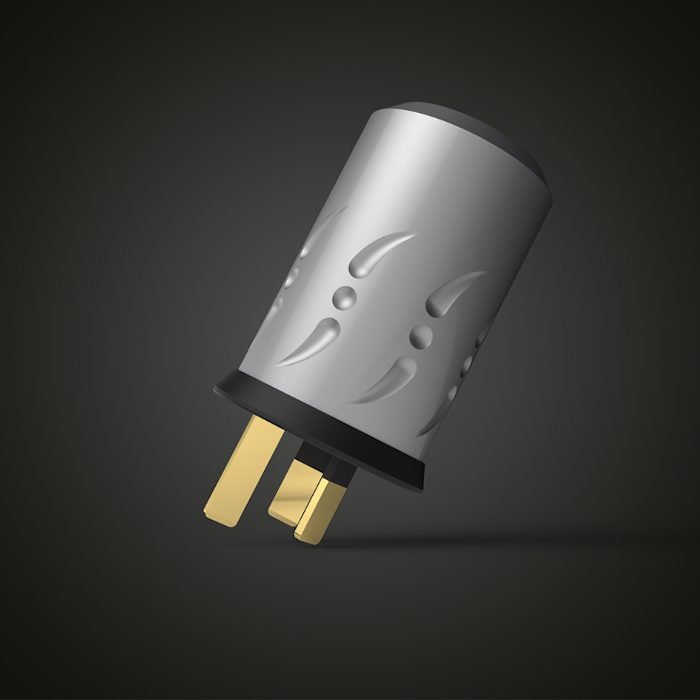

Viborg Viborg VN506G/VF502G Gold Plated AUS/NZ Power Plugs (Set of 2)
Viborg VN506G/VF502G high-end connector uses high quality materials to provide the best possible electrical conductivity. Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Gold. The body is made of a particularly resistant polycarbonate, Bayer Makrolon 2805.
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | VN506G |
| Connector type | Australia / New Zealand |
| Cable external diameter | Ø6mm – Ø20mm |
| Max. conductor diameter | Ø8mm |
| Contacts material | Pure Copper |
| Contacts plating | OFC Copper, Gold |
| Body material | DuPont Zytel® 101L NC010 NYLON RESIN |
| Connection type | To screw |
| Dimensions | 62 x 40mm |
| Total length | 82.5mm |
| Voltage / Current | 125VAC 15A |
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | VF502G |
| Contacts material | Pure Copper |
| Body and contacts support material | DuPont Zytel® 101L NC010 NYLON RESIN |
| Mounting type | To solder (hex screws) |
| Max conductors diameter | Ø8mm |
| Min/Max cable diameter | Ø6mm / Ø20mm |
| Voltage / Current | 250V/10A, 125V/15A |
| Total dimensions | 63.7mm x Ø40mm |
| Color | Silver/Black |
