Description

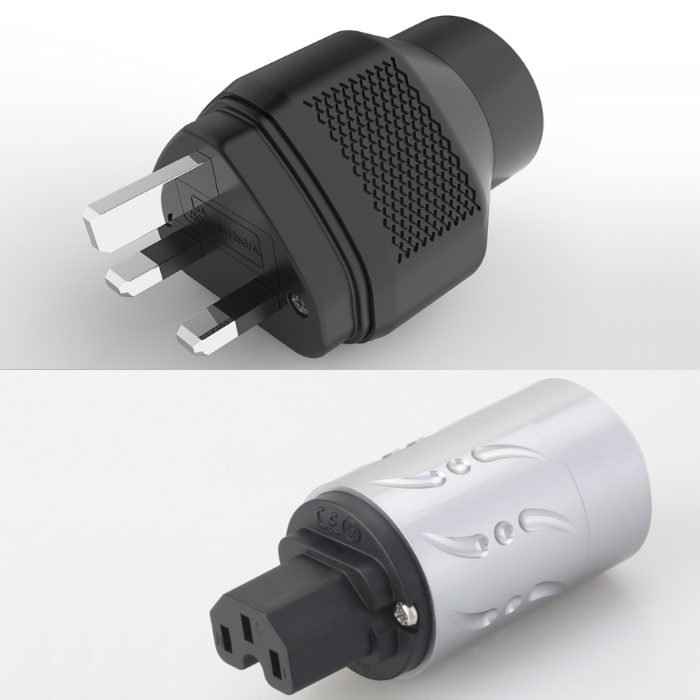

Viborg UK-01R UK + VF502R Rhodium Plated Power Plug (Set of 2)
This UK-01R UK + VF502R Rhodium Plated Power Plug constructed exclusively from material selected and processed for their superior conductivity. The connectors have their contacts made of pure copper, an excellent conductor who also benefits from a triple Rhodium-Copper-Silver layered-plating.
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | UK-01R |
| Type | Male |
| Color | Black |
| Connect | Screws Locking |
| Conductor | Pure copper |
| Triple Plating | Rhodium/Silver/Copper |
| Rating | 13A FUSE 250V A.C. |
| dimensions body | about 57mm*50mm*120mm |
| max cable diameter | 18mm⌀ |
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | VF502R |
| Contacts material | Pure Copper |
| Body and contacts support material | DuPont Zytel® 101L NC010 NYLON RESIN |
| Mounting type | To solder (hex screws) |
| Max conductors diameter | Ø8mm |
| Min/Max cable diameter | Ø6mm / Ø20mm |
| Voltage / Current | 250V/10A, 125V/15A |
| Total dimensions | 63.7mm x Ø40mm |
| Color | Silver/Black |
