Description

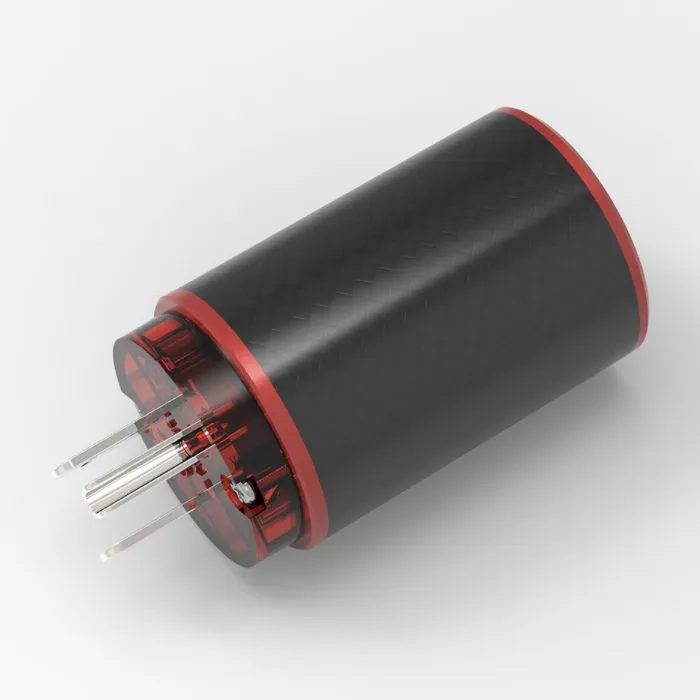

Viborg VM504Ag/VF504Ag Pure Solid Silver US Power Plugs (Set of 2)
Viborg VM504Ag/VF504Ag is truly high-end connector uses high quality pure solid Silver to provide the best possible electrical conductivity.
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | VM504Ag |
| Conductor | Pure Solid Silver(99.998%) |
| Cable external diameter | Ø5mm – Ø18mm |
| Max. conductor diameter | Ø4.8mm (6AWG) |
| Treatment | CRYO-TREATMENT at -196°C for 72 hours |
| Shell | Aluminum insert Carbon Fiber |
| Body material | Bayer Makrolon 2805 |
| Connection type | Hex screw |
| Dimensions | 67mm H X 40mm |
| Total length | 84mm |
| Voltage / Current | 125VAC 15A |
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | VF504Ag |
| Conductor | Pure Solid Silver(99.998%) |
| Cable external diameter | Ø5mm – Ø18mm |
| Max. conductor diameter | Ø4.8mm (6AWG) |
| Treatment | CRYO-TREATMENT at -196°C for 72 hours |
| Shell | Aluminum insert Carbon Fiber |
| Body material | Bayer Makrolon 2805 |
| Connection type | Hex screw |
| Dimensions | 67mm H X 40mm |
| Total length | 84mm |
| Voltage / Current | 10A-15A 125V-250V AC |
