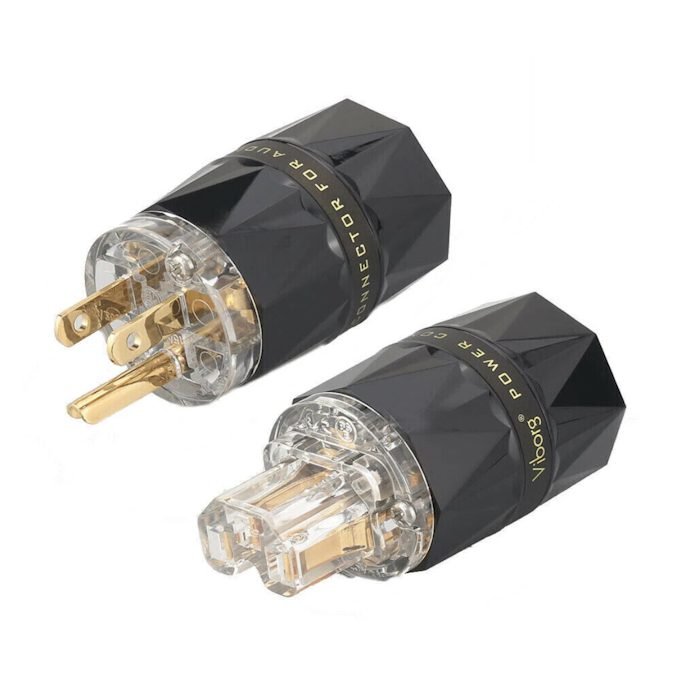

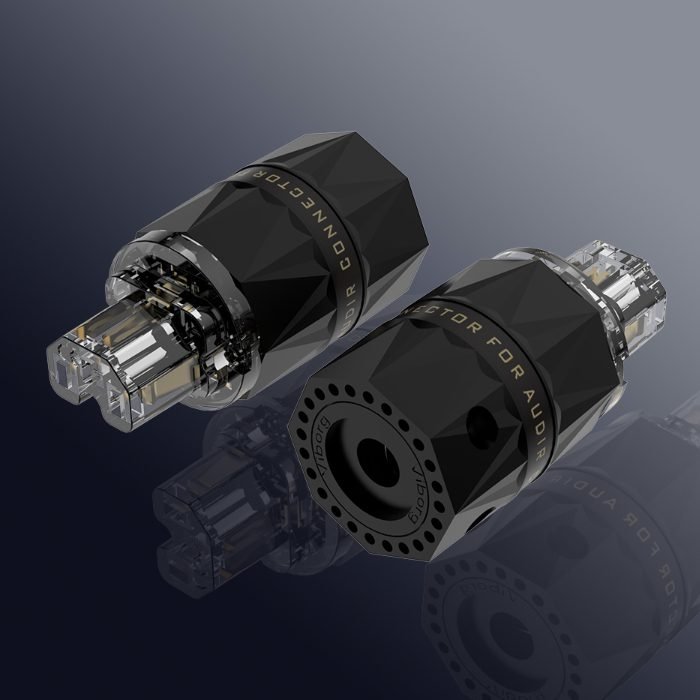

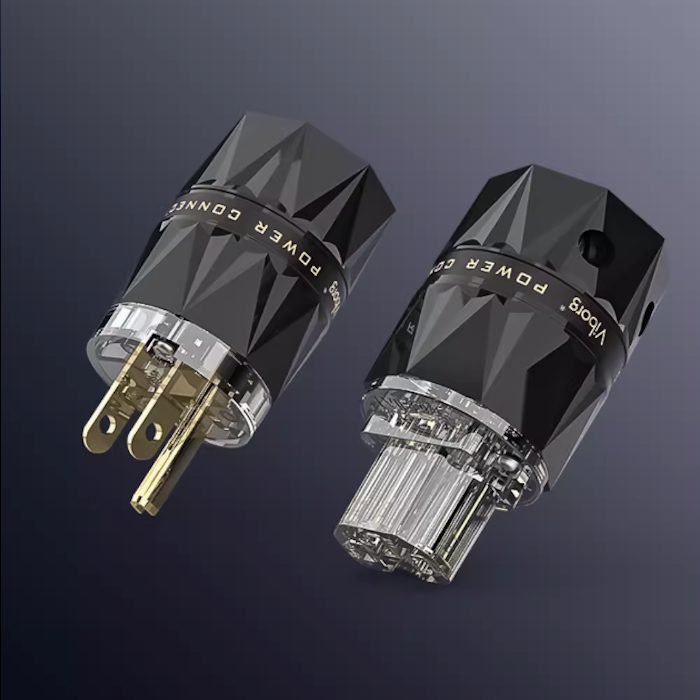

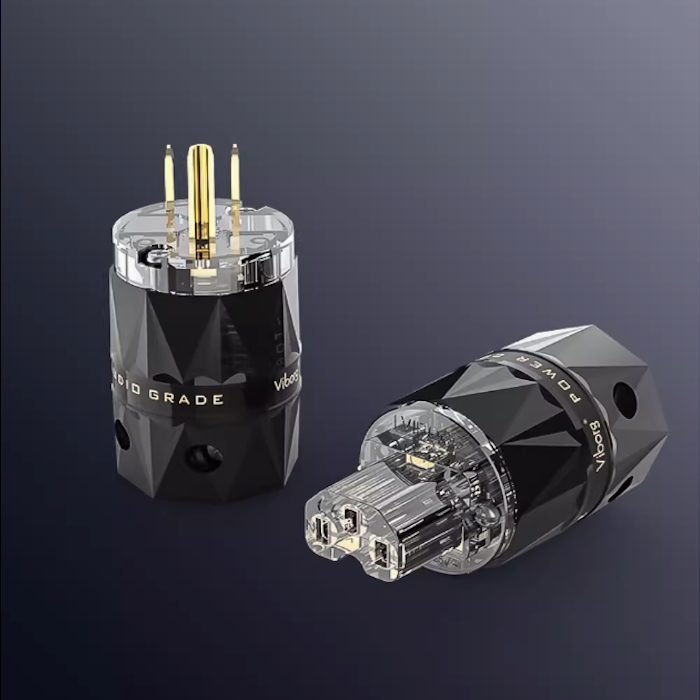

Viborg VM503G/VF503G Gold Plated US Power Plugs (Set of 2)
Viborg VM503G/VF503G high-end connector uses high quality materials to provide the best possible electrical conductivity. Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Gold. The body is made of a particularly resistant polycarbonate, Bayer Makrolon 2805.
Technical characteristics
| SPECIFICATIONS | |
|---|---|

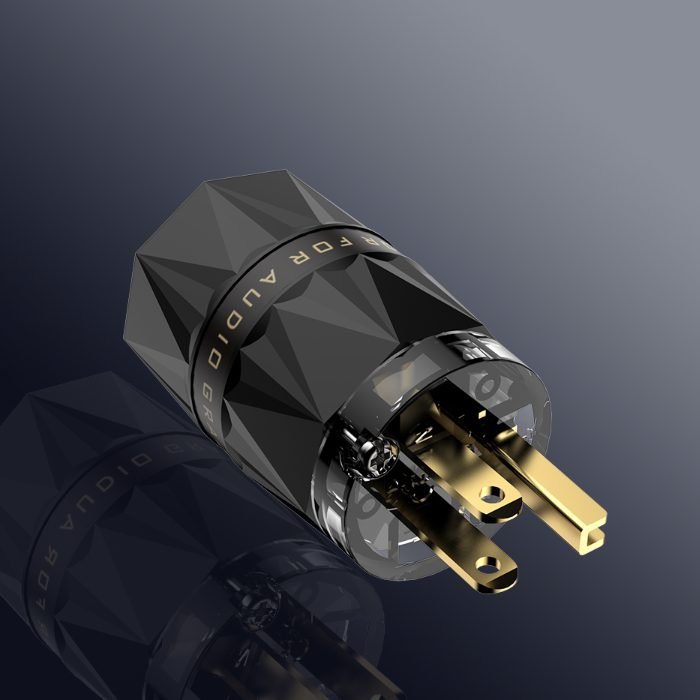

| Model | VM503G |
| Connector type | Type B – US NEMA |
| Cable external diameter | Ø6mm – Ø19mm |
| Max. conductor diameter | Ø8mm |
| Contacts material | Pure Copper |
| Contacts plating | OFC Copper, Gold |
| Body material | Bayer Makrolon 2805 |
| Connection type | To screw |
| Dimensions | 57 x 40mm |
| Total length | 77mm |
| Voltage / Current | 125VAC 15A |
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Model | VF503G |
| Contacts material | Pure Copper |
| Body and contacts support material | Polycarbonate Bayer-2805 |
| Mounting type | To solder (hex screws) |
| Max conductors diameter | Ø8mm |
| Min/Max cable diameter | Ø6mm / Ø19mm |
| Voltage / Current | 250VAC 10A |
| Total dimensions | 77 x Ø40mm |
| Color | Black |
